Wilton Radial Drill - $9,500 (Chubbuck)

make / manufacturer: Wilton

model name / number: 13008

QR Code Link to This Post

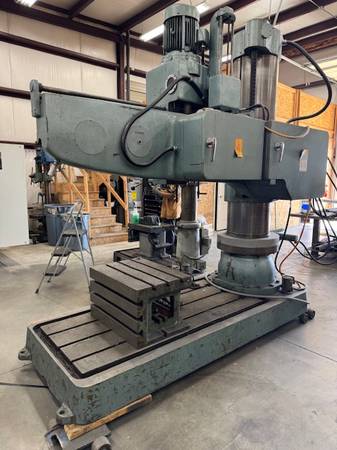

5' X 17" WILTON RADIAL DRILL
MODEL: 5216001, S/N: 13008

SPECIFICATIONS:
COLUMN DIAMETER ....................... 17"
CENTER OF SPINDLE TO COLUMN ........... 63"
MINIMUM COLUMN TO SPINDLE ............. 13-3/8"
MAXIMUM DISTANCE SPINDLE TO BASE ...... 63"
MINIMUM DISTANCE SPINDLE TO BASE ...... 13"
STROKE OF SPINDLE ..................... 14-9/16"
SPINDLE SPEED RANGE(12) ............... 40 - 1920 RPM
SPINDLE TAPER ......................... NO. 5 MORSE
SPINDLE FEEDS (6) ..................... ..003 - .038 IPR
APPROXIMATE MACHINE WEIGHT ............ 11,000 LBS
APPROXIMATE SHIPPING DIMENSIONS ....... 40"W x 78"L x 115"H
MAXIMUM WORKING HEIGHT ................ 125"

EQUIPPED WITH:
POWER ELEVATION
POWER CLAMPING
T-SLOTTED BASE
T-SLOTTED BOX TABLE 27"L x 19"W x 16"H
COOLANT SYSTEM
7-1/2 HORSE POWER SPINDLE MOTOR

post id: 7878982204

posted: 2025-09-04 09:40

updated: 2025-09-08 10:16
