NEW ARROWQUIP Cattle Hydraulic Chute w/Pump 10 Yr. Warrant - $16,050 (Shelley)
1424 N Highway 91
QR Code Link to This Post
★★★★★
Top-mounted hydraulic controls at the rear of the chute
110V electric power pack (top mounted) comes standard
Warranty 10 years
Weight: 2066 lbs.
Dimensions: 66" Wide x 102" High x 133" Long
Product Code: 1050LV $16,050
Vertical Headgate
Controls can be mounted left or right
Hydraulic Headgate
Hydraulic Center Parallel Squeeze with Adjustable Speed
Hydraulic Rear Gate
Rear Door Remote Valve
Hydraulic lever controls can be mounted on either side of chute
Needle doors provide 12.75" of open access to the neck
Top and bottom side access doors can be used independently or together as a full side exit.
Removable side access panel.
Vet cage door swings a full 180 degrees for full access.
Rubber floor for quietest flooring system on the market.
AVAILABLE OPTIONS
STERNUM BAR $450
The sternum bar is intended to keep cattle from going down in the chute, and is easily installed and removed from your squeeze chute with just two bolts.
HYDRAULIC HEAD SWEEP $1550
This simple, gentle, and effective option can be connected to the hydraulics on your squeeze chute to hold the animal’s head in place with ease.
HEAD HOLDER $1550
The Patented Q-Catch Head Holder takes cattle control to a new level, and is extremely useful for tasks including ear tagging, treating pink-eye, dehorning, and more. The two pieces of the Head Holder move in a synchronized, scissor-style motion to clamp around the animal’s head securely for maximum control of your livestock without causing pain. This allows the handler up-close access to the animal’s head for any procedure necessary without placing unnecessary stress on the animal.

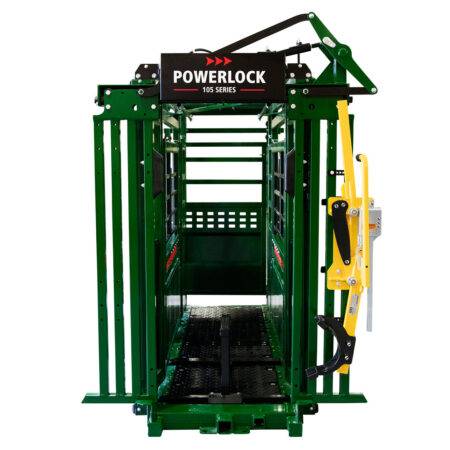

The Q-Power 1050 hydraulic squeeze chute is our least expensive hydraulic chute. From poly brushed pivots to latches, everything in this chute is designed to be quiet. The newly designed 105 Series emerges from the most innovative range of Arrowquip cattle handling products, bringing unparalleled access, unrivaled efficiency, and unlimited potential to the rancher operation.
Q-POWER 105 SERIES CATTLE CHUTE SPECIFICATIONS
Hydraulics are controlled from the mounted valve bank: Cattle Head Gate, Tail Gate, Squeeze, Optional Head Sweep
Hydraulic Parallel Squeeze ranges from 29.5” fully open to 7.75” fully closed
Curtain-style straight head gate doors open to a full 30” top to bottom for cattle to exit
A row of rump fingers with kick bar ensure safety no matter the size of the animal
Nylon rump fingers are engineered to endure high pressure
Optional vet cage door opens in both directions for a full 180° of maneuverability
Improved, low-profile latch ensures the optional vet cage door will not swing to the inside of the chute when slammed shut
Side gates can be opened from top, bottom, or together to access the entire animal
Side access panels (branding gates) are removable and can be configured in a variety of positions to suit your operation’s needs
12.75” needle door access
Rectangular tubing limits cattle bruising and injury
Pivot and latch points mounted for quiet operation
WE HAVE ALL YOUR CATTLE EQUIPMENT IN STOCK
-Vet Cages
-Maternity pen w/auto head catch
-Sweep and Budflow Tubs
-Easy-flow alleys with optional back stop
-Portable heavy-duty loading chutes with vet cage
-Scale platforms
-Transport trailers.
-Sort gates
-Heavy Duty Roller Doors
NEW--FINANCING FOR ARROWQUIP EQUIPMENT. There is no better time than the present to get your hands on the cattle chute you've been dreaming of! For as little as $129 per month for an 5400 manual chute, you can make your ranch safer, more efficient, and more profitable with Arrowquip's cattle handling solutions. Apply quickly and easily to receive farm equipment loans through Arrowquip's Authorized Lending Partners. Simply fill out the form on the link below and a member of our team will be in contact within one business day to assist you with your financing application. To apply go to: https://arrowquip.com/resources/financing
*Priced in USD. Portable Hydraulic Chute Complete as low as $341/month CAD. Based on 60-month term. Offers available on select models to qualified retail customers on approved credit. Actual price may vary. Cattle chute model shown may include optional accessories available at extra cost. (Excludes taxes and down payment, if applicable). Offers are subject to change without notice. Conditions may apply. Contact Howard Equipment for full details.
